SKF BEARING

SKF Tapered Roller Bearing   18690/18620

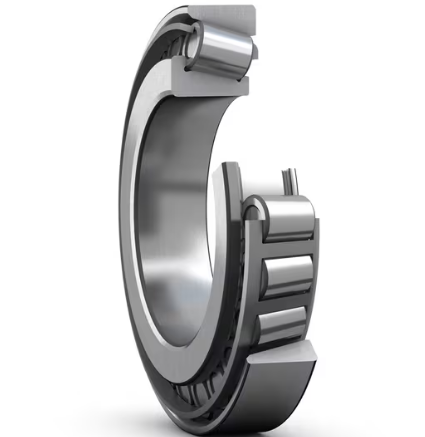

Single row tapered roller bearing

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Get A Quote
Contact Us

SKF Tapered Roller Bearing, various part numbers in stock, welcome inquiry. Fast shipment within 2-3 working days.

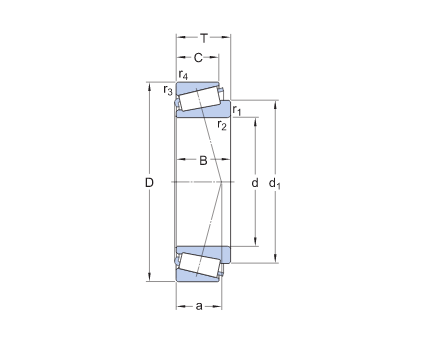

Designation Principal dimensions Basic load ratings Speed ratings
dynamic static Reference speed Limiting speed
d[mm]
D[mm]
T[mm]
C[kN]
C0[kN]
[r/min]
[r/min]
  11590/11520   15.875   42.862   14.288   21.5   17.6   13 000   17 000
  14131/14276   33.338   69.012   19.845   65.8   67   8 000   10 000
  15123/15245   31.75   62   18.161   59.5   57   9 000   11 000
  15578/15520   25.4   57.15   17.462   49.1   45.5   10 000   12 000
  18690/18620   46.038   79.375   17.462   61.1   62   7 000   8 500
  18790/18720   50.8   85   17.462   62.1   65.5   6 300   8 000
  1988/1922   28.575   57.15   19.845   58.2   55   10 000   12 000
  24780/24720   41.275   76.2   22.225   84.2   86.5   7 000   9 000
  25580/25520   44.45   82.931   23.812   99.1   106   6 700   8 000
  25580/25522   44.45   83.058   23.876   99.1   106   6 700   8 000
  25580/25523   44.45   82.931   26.988   99.1   106   6 700   8 000
  25590/25520   45.618   82.931   23.812   99.1   106   6 700   8 000
  25590/25523   45.618   82.931   26.988   99.1   106   6 700   8 000
  302/28   28   58   17.25   46.6   41.5   10 000   12 000
  30202   15   35   11.75   18.5   14.6   17 000   20 000
  30203   17   40   13.25   23.4   18.6   15 000   18 000
  30204   20   47   15.25   34.1   28   12 000   15 000
  30205   25   52   16.25   38.1   33.5   11 000   13 000
  30206   30   62   17.25   50   44   9 000   11 000
  30207   35   72   18.25   63.2   56   8 000   9 500
  30208   40   80   19.75   75.8   68   7 000   8 500
  30208 R   40   80   19.75   75.8   68   7 000   8 500
  30209   45   85   20.75   81.6   76.5   6 300   8 000
  30210   50   90   21.75   93.1   91.5   6 000   7 500
  30211   55   100   22.75   111   106   5 300   6 700
  30212   60   110   23.75   120   114   5 000   6 000
  30213   65   120   24.75   141   134   4 500   5 600
  30214   70   125   26.25   155   156   4 300   5 300
  30215   75   130   27.25   171   176   4 000   5 000
  30216   80   140   28.25   184   183   3 800   4 800

WHCD Bearing Co.,Ltd is professional bearing supplier, engaged in beaing business with more than eighteen years, export to worldwide countries, as Ameria, European, Middle-East, Southeast Asia …etc. with plenty long-term cooperation cusomers.

Original Quality and Warranted, and Bearing experts team support customer service.

WHCD Bearing company will provide professional and prompt solution for customers.
Various bearing types for customer choose:
Bearing Types:
Self-aligning ball bearing
Cylindrical roller bearing
Spherical roller bearing
Tapered roller bearing
Angular contact ball
Needle roller
Deep groove ball bearing
Axial deep groove ball
Pillow block bearing and units
LM/Linear Guide
