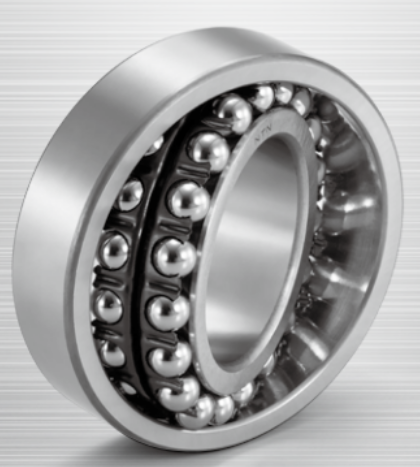

NTN Self-Aligning Ball Bearings 1309SK;H 309X

NTN Self-Aligning Ball Bearings, the outer ring raceway of self-aligning ball bearings forms a spherical surface whose center is common to the bearing center. The inner ring of the bearing has two raceways. The balls, cage, and inner ring of these bearings are capable of shifting in order to compensate for a certain degree of misalignment with the outer rings. As a
result, the bearing is able to align itself and compensate for shaft / housing finishing unevenness, bearing fitting error, and other sources of misalignment as shown in Fig. 1.
Since axial load capacity is limited, self-aligning ball bearing are not suitable for applications with heavy axial loads.

Get A Quote
Contact Us

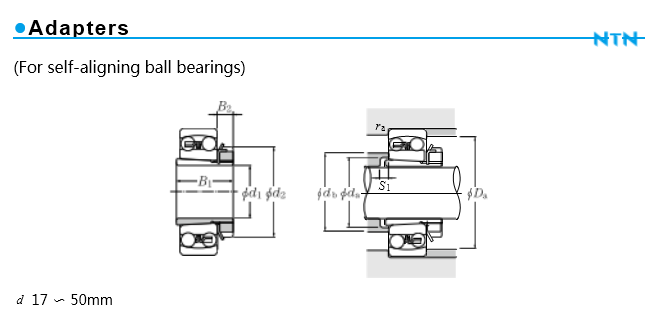

NTN Self-Aligning Ball Bearings.

various part numbers in stock, welcome inquiry. Fast shipment within 2-3 working days.

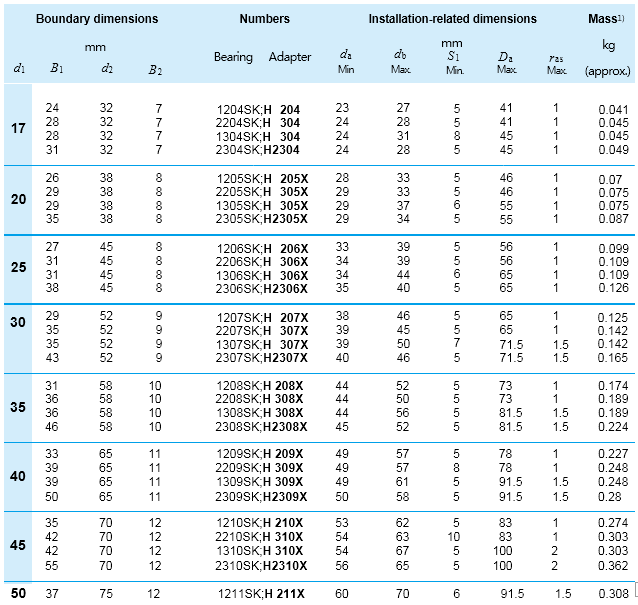

31 58 10 1208SK;H 208X 44 52 5
36 58 10 2208SK;H 308X 44 50 5
36 58 10 1308SK;H 308X 44 56 5
46 58 10 2308SK;H2308X 45 52 5
33 65 11 1209SK;H 209X 49 57 5
39 65 11 2209SK;H 309X 49 57 8
39 65 11 1309SK;H 309X 49 61 5
50 65 11 2309SK;H2309X 50 58 5
35 70 12 1210SK;H 210X 53 62 5
42 70 12 2210SK;H 310X 54 63 10
42 70 12 1310SK;H 310X 54 67 5
55 70 12 2310SK;H2310X 56 65 5

WHCD Bearing Co.,Ltd is professional bearing supplier, engaged in bearing business with more than eighteen years, export to worldwide countries, as America, European, Middle-East, Southeast Asia …etc. with plenty long-term cooperation customers. WHCD Bearing company will provide professional and prompt solution for customers.Original Quality and Warranted, and Bearing experts team support customer service. Various bearing types for customer choose:

Bearing Types:
Self-aligning ball bearing
Cylindrical roller bearing
Spherical roller bearing
Tapered roller bearing
Angular contact ball
Needle roller
Deep groove ball bearing
Axial deep groove ball
Pillow block bearing and units
LM/Linear Guide
