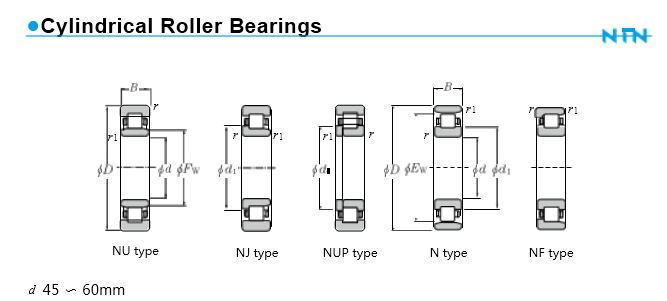

NTN Cylindrical roller bearings NU209EA

NTN Cylindrical roller bearings can accommodate heavy radial loads due to the line contact formed between their rolling elements and raceways.
These bearings are also suitable for high speed applications since the rollers are guided by either inner or outer ring ribs. Cylindrical roller bearings are separable, allowing them to be
easily installed and disassembled even when interference fits are required.
Among the various types of cylindrical roller bearings, E type and EA type have a high load capacity while maintaining standard boundary dimensions.

Get A Quote
Contact Us

NTN Cylindrical roller bearings.

various part numbers in stock, welcome inquiry. Fast shipment within 2-3 working days.

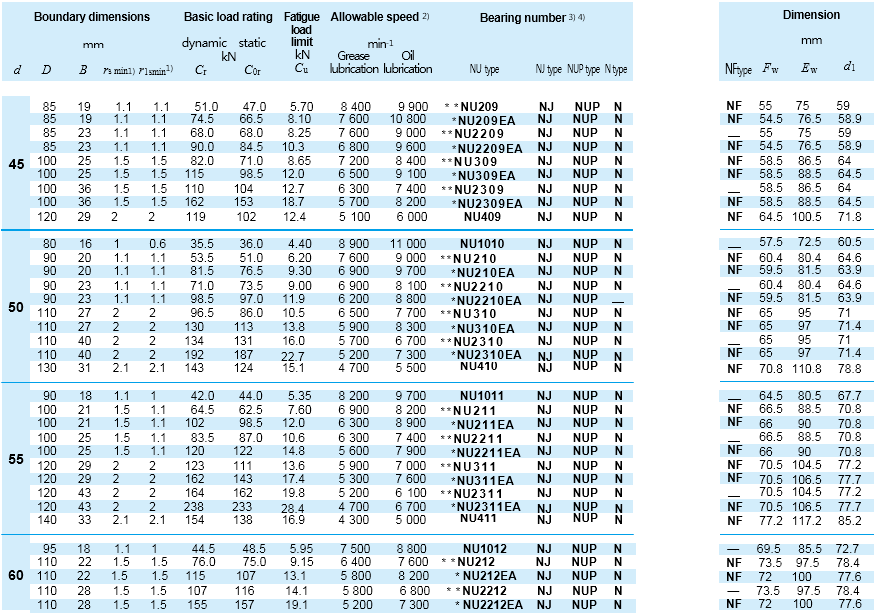

19 1.1 1.1 74.5 66.5 8.1 7 600 10 800 *NU209EA
23 1.1 1.1 68 68 8.25 7 600 9 000 **NU2209
23 1.1 1.1 90 84.5 10.3 6 800 9 600 *NU2209EA
25 1.5 1.5 82 71 8.65 7 200 8 400 **NU309
25 1.5 1.5 115 98.5 12 6 500 9 100 *NU309EA
36 1.5 1.5 110 104 12.7 6 300 7 400 **NU2309
36 1.5 1.5 162 153 18.7 5 700 8 200 *NU2309EA
16 1 0.6 35.5 36 4.4 8 900 11 000 NU1010
20 1.1 1.1 53.5 51 6.2 7 600 9 000 **NU210
20 1.1 1.1 81.5 76.5 9.3 6 900 9 700 *NU210EA
23 1.1 1.1 71 73.5 9 6 900 8 100 **NU2210
23 1.1 1.1 98.5 97 11.9 6 200 8 800 *NU2210EA
27 2 2 96.5 86 10.5 6 500 7 700 **NU310
27 2 2 130 113 13.8 5 900 8 300 *NU310EA
40 2 2 134 131 16 5 700 6 700 **NU2310
40 2 2 192 187 22.7 5 200 7 300 *NU2310EA
31 2.1 2.1 143 124 15.1 4 700 5 500 NU410
18 1.1 1 42 44 5.35 8 200 9 700 NU1011
21 1.5 1.1 64.5 62.5 7.6 6 900 8 200 **NU211
21 1.5 1.1 102 98.5 12 6 300 8 900 *NU211EA
25 1.5 1.1 83.5 87 10.6 6 300 7 400 **NU2211
25 1.5 1.1 120 122 14.8 5 600 7 900 *NU2211EA
29 2 2 123 111 13.6 5 900 7 000 **NU311
29 2 2 162 143 17.4 5 300 7 600 *NU311EA
43 2 2 164 162 19.8 5 200 6 100 **NU2311
43 2 2 238 233 28.4 4 700 6 700 *NU2311EA
33 2.1 2.1 154 138 16.9 4 300 5 000  NU411
95      18       1.1      1          44.5        48.5       5.95        7 500        8 800           NU1012         NJ      NUP     N
110      22      1.5      1.5       76.0        75.0       9.15        6 400        7 600   ＊＊NU212            NJ      NUP     N
60  110      22      1.5       1.5     115         107        13.1          5 800        8 200       ＊NU212EA      NJ      NUP     N
110      28      1.5      1.5      107        116         14.1          5 800        6 800    ＊＊NU2212         NJ      NUP     N
 155        157         19.1          5 200        7 300       ＊NU2212EA    NJ      NUP     N 110      28      1.5      1.5      155        157         19.1          5 200        7 300       ＊NU2212EA    NJ      NUP     N



WHCD Bearing Co.,Ltd is professional bearing supplier, engaged in bearing business with more than eighteen years, export to worldwide countries, as America, European, Middle-East, Southeast Asia …etc. with plenty long-term cooperation customers. WHCD Bearing company will provide professional and prompt solution for customers.Original Quality and Warranted, and Bearing experts team support customer service. Various bearing types for customer choose:

Bearing Types:
Self-aligning ball bearing
Cylindrical roller bearing
Spherical roller bearing
Tapered roller bearing
Angular contact ball
Needle roller
Deep groove ball bearing
Axial deep groove ball
Pillow block bearing and units
LM/Linear Guide
