KOYO BEARING

KOYO tapered roller bearings 45380

KOYO  Single-row tapered roller bearings, Able to carry radial and axial load in one direction simultaneously. Combined radial and axial load can be also accommodated. Suitable for heavy load and impact load. The larger the contact angle (α) is, the greater the bearing resistance to axial load.

Koyo tapered roller bearings whose bearing numbers are suffixed by “J” are precision ground in accordance with the ISO 355 (Sub-unit, Metric Series) specifying

the outer ring width and small inside diameter as well as the contact angle, so that outer rings and inner ring assembly (inner ring, rollers and cage assembly) of

these bearings are internationally interchangeable.

Get A Quote
Contact Us

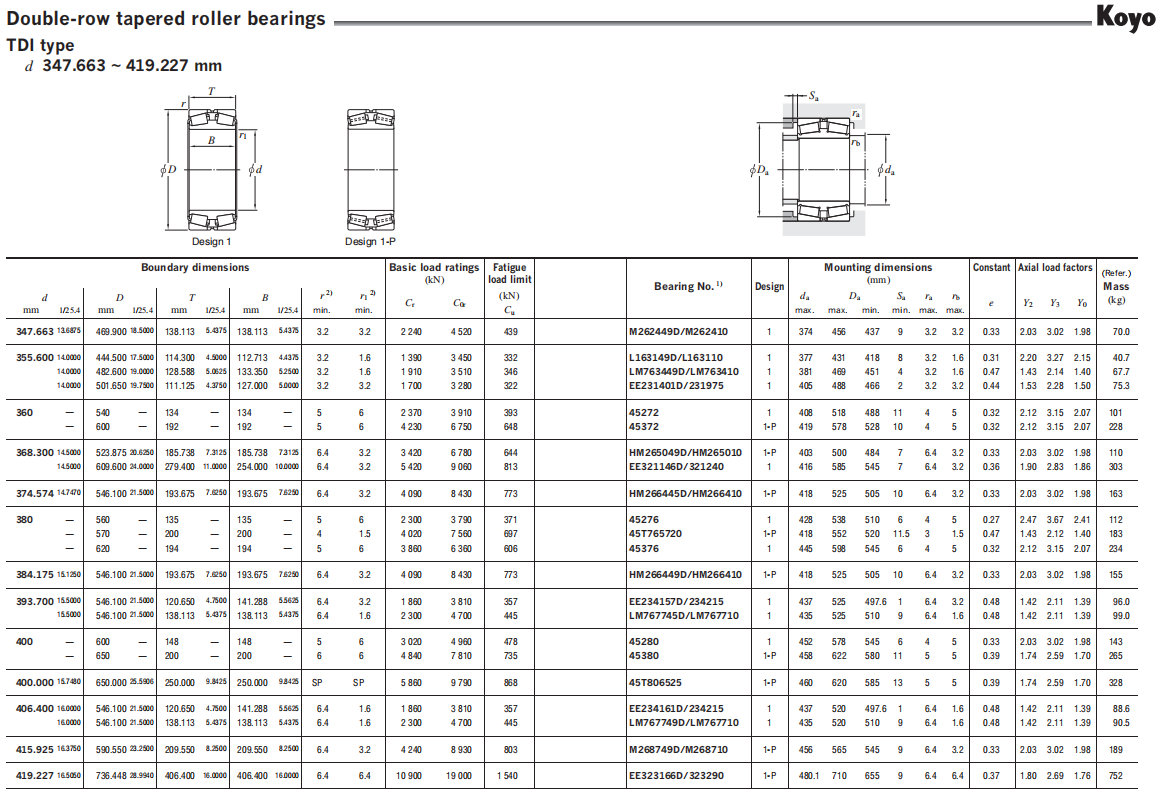

KOYO Double-row tapered roller bearings

Various part numbers in stock, welcome inquiry. Fast shipment within 2-3 working days.

Boundary dimensions (Refer.)
d                          D Bearing No. 1) Mass
mm (kg)
347.663 13.6875 M262449D/M262410 70
355.600 14.0000 14.0000 L163149D/L163110 40.7 67.7 75.3
14 LM763449D/LM763410
EE231401D/231975
360 45272 101
45372 228
368.300 14.5000 HM265049D/HM265010 110
14.5 EE321146D/321240 303
374.574 14.7470 HM266445D/HM266410 163
380 45276 112
45T765720 183
45376 234
384.175 15.1250 HM266449D/HM266410 155
393.700 15.5000 EE234157D/234215 96.0 99.0
15.5 LM767745D/LM767710
400 45280 143
45380 265
400.000 15.7480 45T806525 328
406.400 16.0000 EE234161D/234215 88.6 90.5
16 LM767749D/LM767710
415.925 16.3750 M268749D/M268710 189
419.227 16.5050 EE323166D/323290 752

WHCD Bearing Co.,Ltd is professional bearing supplier, engaged in bearing business with more than eighteen years, export to worldwide countries, as America, European, Middle-East, Southeast Asia …etc. with plenty long-term cooperation customers. WHCD Bearing company will provide professional and prompt solution for customers.Original Quality and Warranted, and Bearing experts team support customer service. Various bearing types for customer choose:

Bearing Types:
Self-aligning ball bearing
Cylindrical roller bearing
Spherical roller bearing
Tapered roller bearing
Angular contact ball
Needle roller
Deep groove ball bearing
Axial deep groove ball
Pillow block bearing and units
LM/Linear Guide
