7048DF KOYO Angular Contact Ball Bearings

KOYO  angular contact ball bearings.

Single-row bearings can accommodate radial load and axial load in one direction.

DB and DF matched pair bearings and double-row bearings can accommodate radial load and axial load in both directions.

Two or more single-row angular contact ball bearings are often combined in order to increase the load rating or rigidity. In this case, two types of arrangements, back-to-back

arrangement (DB) and face-to-face arrangement (DF), are available. If the load rating of a single-row angular contact ball bearing is insufficient, use the tandem arrangement (DT).

Get A Quote
Contact Us

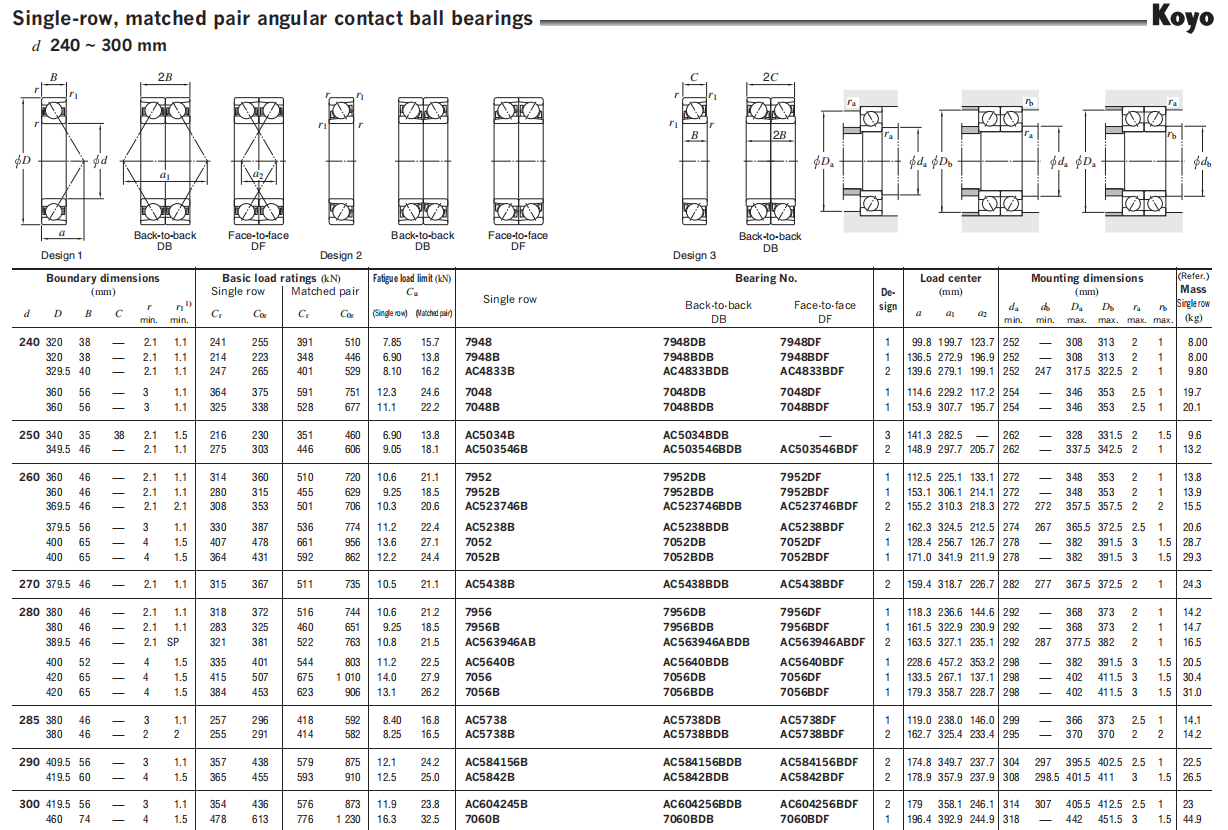

KOYO Single-row, matched pair angular contact ball bearings

Various part numbers in stock, welcome inquiry. Fast shipment within 2-3 working days.

Boundary dimensions Basic load ratings (kN) Bearing No. (Refer.)
(mm) Single row         Matched pair Single row Back-to-back             Face-to-face DB                                                                        DF Mass
Cr                   C0r                   Cr                   C0r Single row
d D B (kg)
240
320 38 241 255 7948 7948DB 7948DF 8
320 38 214 223 7948B 7948BDB 7948BDF 8
329.5 40 247 265 AC4833B AC4833BDB AC4833BDF 9.8
360 56 364 375 7048 7048DB 7048DF 19.7
360 56 325 338 7048B 7048BDB 7048BDF 20.1
250 340 35 216 230 AC5034B AC5034BDB                                                                      — 9.6
349.5 46 275 303 AC503546B AC503546BDB                              AC503546BDF 13.2
260
360 46 314 360 7952 7952DB 7952DF 13.8
267
360 46 280 315 7952B 7952BDB 7952BDF 13.9
369.5 46 308 353 AC523746B AC523746BDB AC523746BDF 15.5
379.5 400 56 330 387 AC5238B AC5238BDB  7052DB AC5238BDF 20.6
400 65 407 478 7052 7052BDB 7052DF 28.7
65 364 431 7052B 7052BDF 29.3
270 379.5
46
315 367 AC5438B AC5438BDB                                        AC5438BDF 24.3
280
380 46 318 372 7956 7956DB 7956DF 14.2
380 46 283 325 7956B 7956BDB 7956BDF 14.7
389.5 46
321
381 AC563946AB AC563946ABDB AC563946ABDF 16.5
400 52 335 401 AC5640B AC5640BDB  7056DB AC5640BDF 20.5
420 65 415 507 7056 7056BDB 7056DF 30.4
420 65 384 453 7056B 7056BDF 31
285 380 46 257 296 AC5738 AC5738DB AC5738DF 14.1
380 46 255 291 AC5738B AC5738BDB AC5738BDF 14.2
290 409.5 419.5 56 357 438 AC584156B AC584156BDB  AC5842BDB AC584156BDF  AC5842BDF 22.5
60 365 455 AC5842B 26.5
300 419.5 460 56 354 436 AC604245B AC604256BDB  7060BDB AC604256BDF  7060BDF 23
74 478 613 7060B 44.9
