22276-K-MB FAG Spherical Roller Bearing

FAG Spherical roller bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages.

The inner rings have cylindrical or tapered bores. The symmetrical barrel rollers orient themselves freely on the concave outer ring raceway. As a result, shaft flexing and misalignment of the bearing seats are compensated, see section Compensation of angular misalignments.

Get A Quote
Contact Us

FAG Spherical roller bearings

Various part numbers in stock, welcome inquiry. Fast shipment within 2-3 working days.

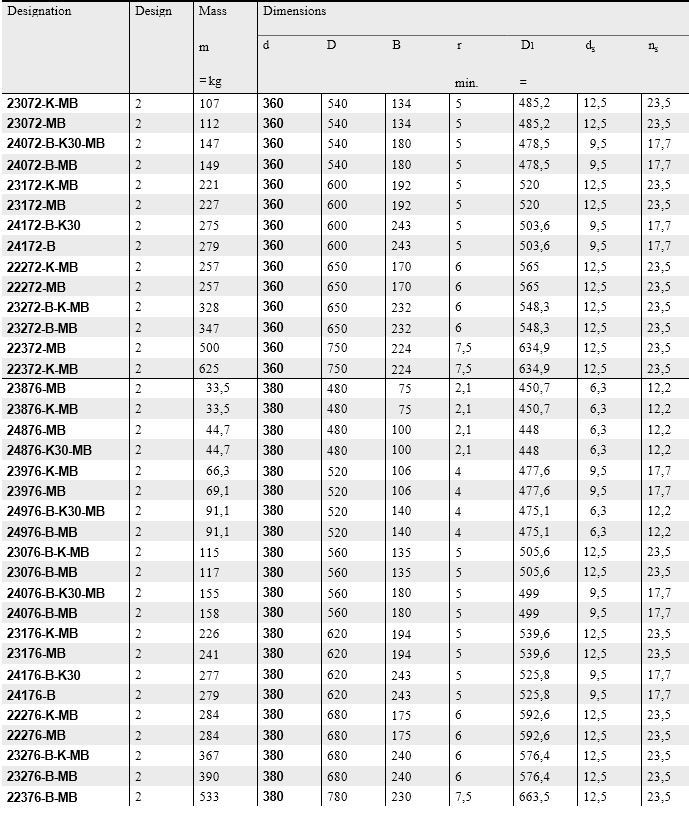

Dimension table (continued) · Dimensions in mm
Designation Design Mass Dimensions
KG d D B
23072-K-MB 2 107 360 540 134
23072-MB 2 112 360 540 134
24072-B-K30-MB 2 147 360 540 180
24072-B-MB 2 149 360 540 180
23172-K-MB 2 221 360 600 192
23172-MB 2 227 360 600 192
24172-B-K30 2 275 360 600 243
24172-B 2 279 360 600 243
22272-K-MB 2 257 360 650 170
22272-MB 2 257 360 650 170
23272-B-K-MB 2 328 360 650 232
23272-B-MB 2 347 360 650 232
22372-MB 2 500 360 750 224
22372-K-MB 2 625 360 750 224
23876-MB 2 33,5 380 480 75
23876-K-MB 2 33,5 380 480 75
24876-MB 2 44,7 380 480 100
24876-K30-MB 2 44,7 380 480 100
23976-K-MB 2 66,3 380 520 106
23976-MB 2 69,1 380 520 106
24976-B-K30-MB 2 91,1 380 520 140
24976-B-MB 2 91,1 380 520 140
23076-B-K-MB 2 115 380 560 135
23076-B-MB 2 117 380 560 135
24076-B-K30-MB 2 155 380 560 180
24076-B-MB 2 158 380 560 180
23176-K-MB 2 226 380 620 194
23176-MB 2 241 380 620 194
24176-B-K30 2 277 380 620 243
24176-B 2 279 380 620 243
22276-K-MB 2 284 380 680 175
22276-MB 2 284 380 680 175
23276-B-K-MB 2 367 380 680 240
23276-B-MB 2 390 380 680 240
22376-B-MB 2 533 380 780 230
WHCD Bearing Co.,Ltd is professional bearing supplier, engaged in bearing business with more than eighteen years, export to worldwide countries, as America, European, Middle-East, Southeast Asia …etc. with plenty long-term cooperation customers. WHCD Bearing company will provide professional and prompt solution for customers.Original Quality and Warranted, and Bearing experts team support customer service. Various bearing types for customer choose:
Bearing Types:
Self-aligning ball bearing
Cylindrical roller bearing
Spherical roller bearing
Tapered roller bearing
Angular contact ball
Needle roller
Deep groove ball bearing
Axial deep groove ball
Pillow block bearing and units
LM/Linear Guide
